Types of Fire Trucks and their Purpose

Three Fire Apparatus, red type 3, USFS green Type 4, and a red Type 6 parked on asphalt in front of forgery

Fire engines have advanced throughout the last four centuries. The first fire engines were human-propelled water pumps with no room for personnel. Around the end of the 1800s, the threat of fire within densely populated areas brought about paid firefighters equipped with horses to pull the early apparatus.  The modern-day fire engine emerged in the 1960s armed with water pumps, a reservoir, and enclosed seats for the crew.

 As the fire threats began to change, so did the specialization of the fire engine.

What are the different types of fire engines?

The National Fire Protection Association (NFPA) Standard 1901, Standard for Automotive Fire Apparatus, classifies vehicles by type and function. This is important because it created universal fire truck standards and terminology to help fire departments find an apparatus that will fit their needs.

Fire Engine Types and Classification:

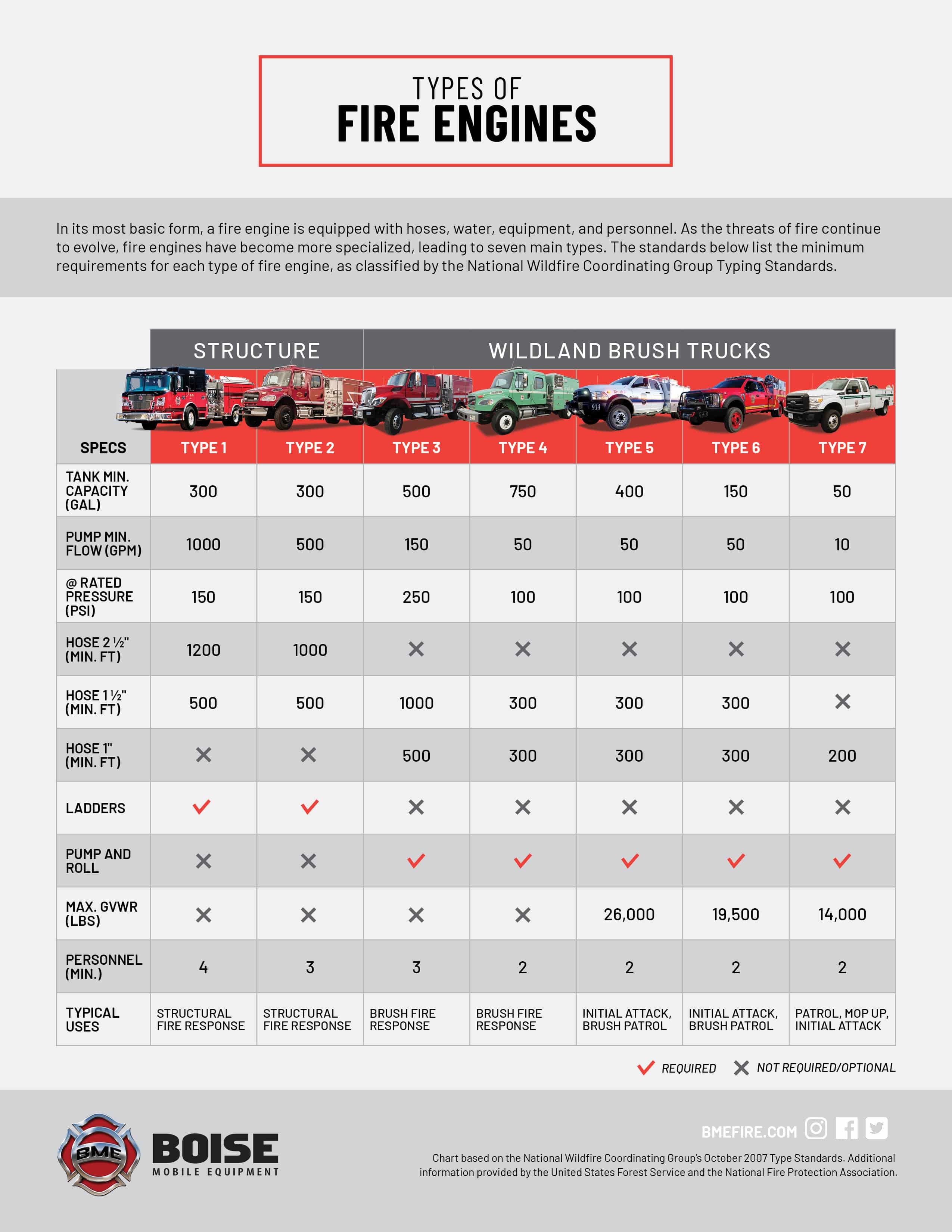

Infographic explaining the different types of fire trucks

Type 1 Fire Engine

A Type 1 fire truck, typically responds to structural fires and is the most common type of fire truck in use today. Densely populated areas depend on a Type 1 fire apparatus to efficiently maneuver to the call and deploy an array of ladders to reach fires in elevated buildings. A typical custom pumper holds around 400 to 500 gallons of water.  Oftentimes the amount of water needed to extinguish the fire cannot be supplied by the tank alone. Finding a reliable water supply is one of the most fundamental operations when arriving on the fire scene. In addition, Type 1 pumpers are equipped to carry up to 4 firefighters. Commonly found on these apparatus are SCBA’s, chainsaws, circular saws, and many different types of specialized equipment dependent on the department’s needs.

Type 2 Fire Engine

Type 2 fire trucks are similar to the Type 1, and typically are equipped with the same specs and tools. They are also the most common truck seen in a suburban area responding to structural fires. Commercial pumpers are more compact but still holds the same amount of equipment as Type 1. Typically seen first on the scene to start fire extinguishing tasks until more support arrives. Type 2 pumpers can usually carry 3 or 4 crew members. Commonly found on these apparatus are several different types of specialized equipment such as chainsaws, SCBA’s, and circular saws. The features are installed dependent on the needs of the department.

Learn more about Type 1 and Type 2 Engines by Pierce here >>

https://www.piercemfg.com/pierce/blog/types-of-fire-trucks

commerical pumper

Type of Wildland Fire Engines

A Type 3, Type 4, and Type 6 are what are considered “wildland engines” or “brush trucks.” These are the vehicles that respond to wildfires and have the ability to drive in rough terrain to respond to a fire or rescue. Wildland engines are specially designed for the technique of pump-and-roll.  This is a tactic where the vehicle drives with the pump engaged while a firefighter uses a hose to spray water on the fire.

Type 3 Fire Engine

Type 3 has four-wheel drive to make driving over rough terrain easier and has a maximum gross vehicle weight rating (GVWR) of over 26,000 lbs.  The Type 3 has a few requirements including the ability to carry at least 500 US gallons of water and pump 150 US gallons per minute at a pressure of 250 pounds per square inch, and they must be able to transport at least 3 crew members. Type 3 and Type 4 often look similar to one another. However, the biggest difference is their minimum personnel and tank capacities. type 3 wildland fire engine

Type 4 Fire Engine

The Type 4 Wildland engine is very similar to the type 3, but has a few very distinct differences. Type 4 is used to drive over rough terrain and weighs 26,000 lbs, but it sacrifices a smaller pump and less hose for a larger 750-gallon tank. The Type 4 standard of pumping is 50 US gallons per minute at a pressure of 100 pounds per square inch. The minimum number of personnel a Type 4 must carry is 2. type 4 fish and wildlfie

Type 5, Type 6, and Type 7 Fire Engine

Type 5, 6, and 7 are typically customized to meet the needs of each specific department. These vehicles are typically pick-up truck-based with 4-wheel drive. These engines are often seen in both wildland and suburban settings. These fire engines have a much smaller configuration than a typical Type 3 or 4 engine. The smaller body still allows the department to carry 50 to 400 gallons of water with the maneuverability and accessibility that you don’t have in Type 3 or 4. Types 5 through 7 are used heavily for the initial fire suppression response, and their GVWR’s are rated in ascending order from 26,000 lbs in Type 5 engines to 14,000 on Type 7. This engine classification is designed to hold a minimum of 2 people and carry hose diameters ranging from 1 inch to 1 ½ inch. type 6 engine

Conclusion

As a general rule of thumb, fire engine types are specified from largest to smallest size, Types 1-2 being the largest to carry large pumps and ladders for structure fires, and Types 5-7 being the smallest for navigating rough wildland terrain. Type 3 and 4 engines are mid-sized engines built both for wildland mobility and large water capacity. The general difference between these two is that Type 4 engines have much larger water tanks than Type 3 engines.
